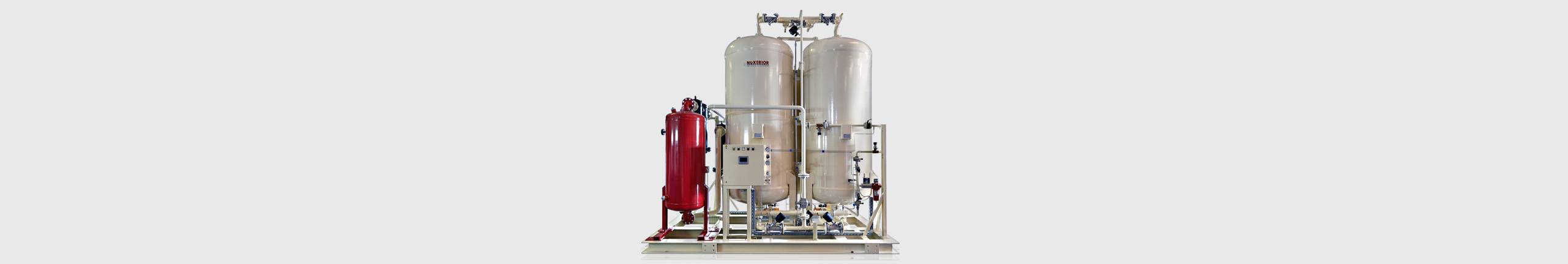

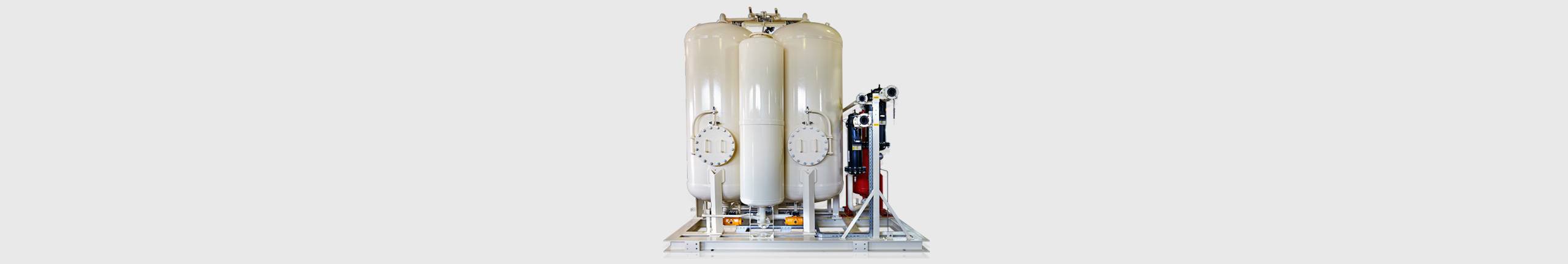

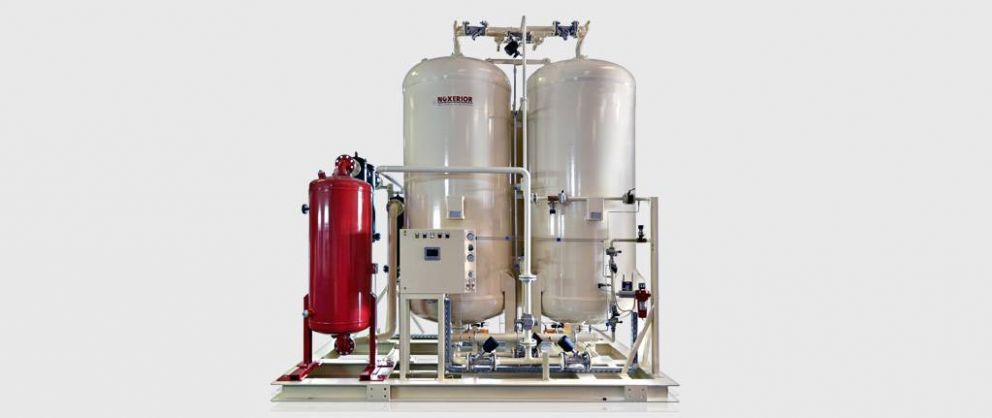

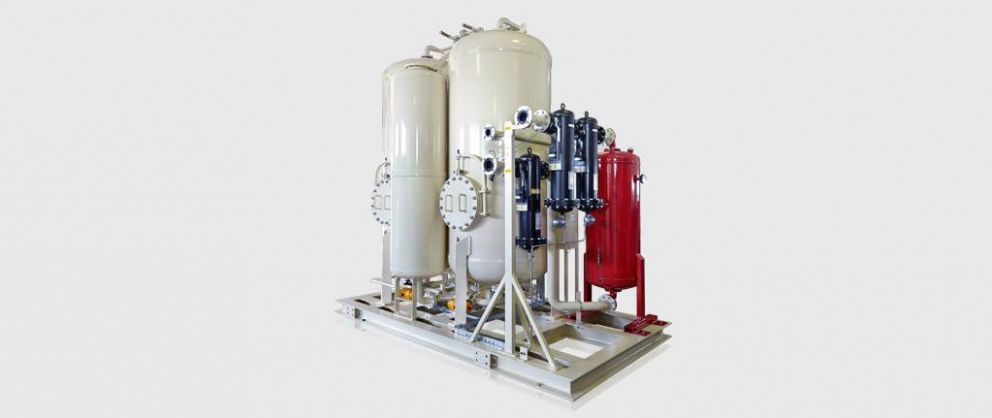

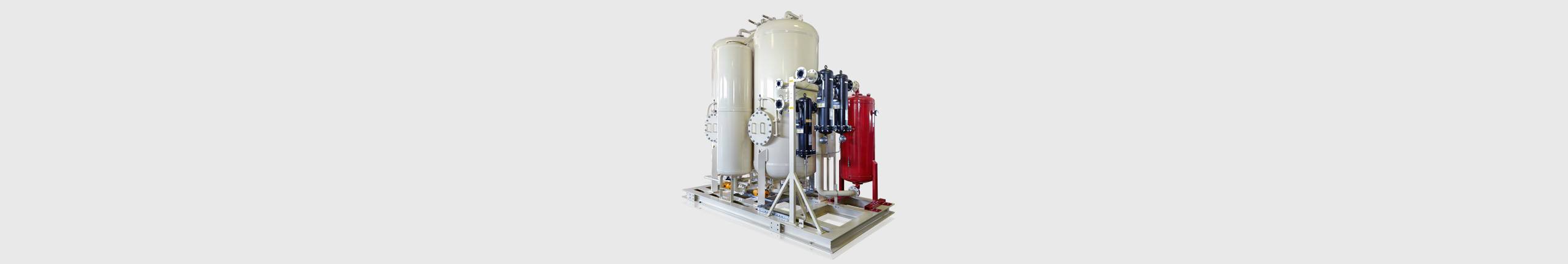

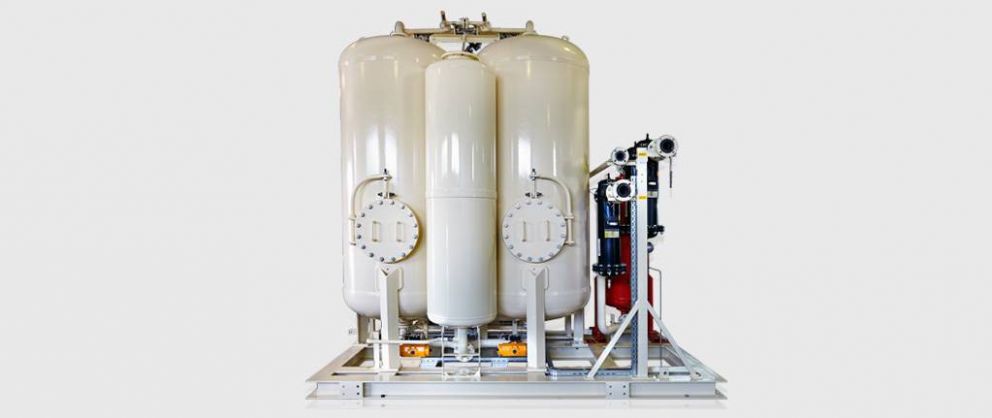

Twin-Tower PSA Oxygen Generator - OXYPURE®

Compared to our Modular PSA Oxygen Generators, the OXYPURE® Twin-Tower PSA Oxygen Generators from NOXERIOR are able to cover larger oxygen consumptions.

These Twin-Tower systems are designed for heavy-duty operation, where system availability in combination with low running costs are primary objectives.

The key features of the OXYPURE® Twin-Tower PSA Oxygen Generators are:



  • High Reliability
    Low gas speeds through the molecular sieve beds, first-class components, stainless steel valve bodies and process piping, heavy-duty industrial PLC. Manufactured to work. Always.

  • Lowest Energy Consumption
    Energy cost is your major expense, not depreciation. Fast pay-back assured. Let OXYPURE® help you lower costs.

  • Easy Installation
    Easy installation and integration with existing equipment: All system tie-in points are on one side.

  • Compact Dimensions
    Limited height and minimum footprint to reduce transport costs. The largest OXYPURE® oxygen generators OS-100x3 and OS-100x4 will be supplied as turn-key installed systems on a transport frame.

  • Customisation
    An extended list of options allow you to define your specific OXYPURE® Twin-Tower PSA Oxygen Generator adjusted to your individual requirements;



Technical Performance - OXYPURE® Twin-Tower PSA Oxygen Generators

  • Purity : 90 to 95% Oxygen
  • Flow up to 100 Nm3/h
  • Feed air pressure : minimum 6,0 and maximum 7,5 bar(g) .
  • Oxygen Discharge Pressure = from 5 to 6,0 bar(g)
  • Oxygen Dew Point = < -60 °C

Standard Components

  • Set of External Feed Air Filters

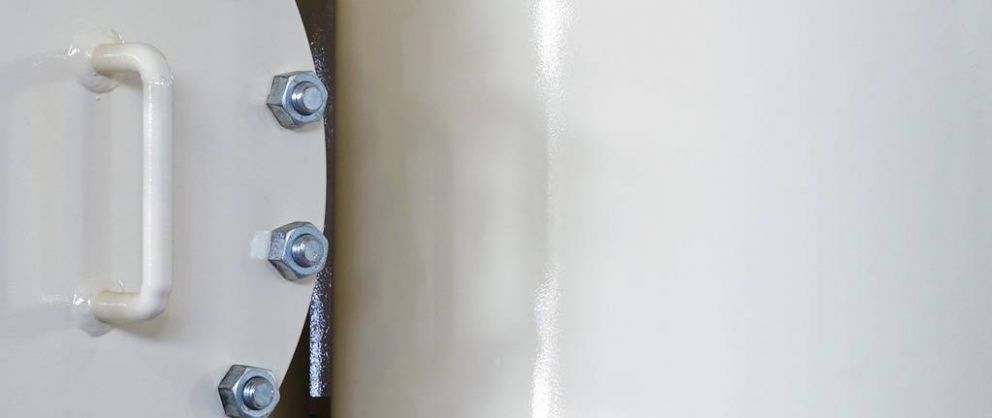

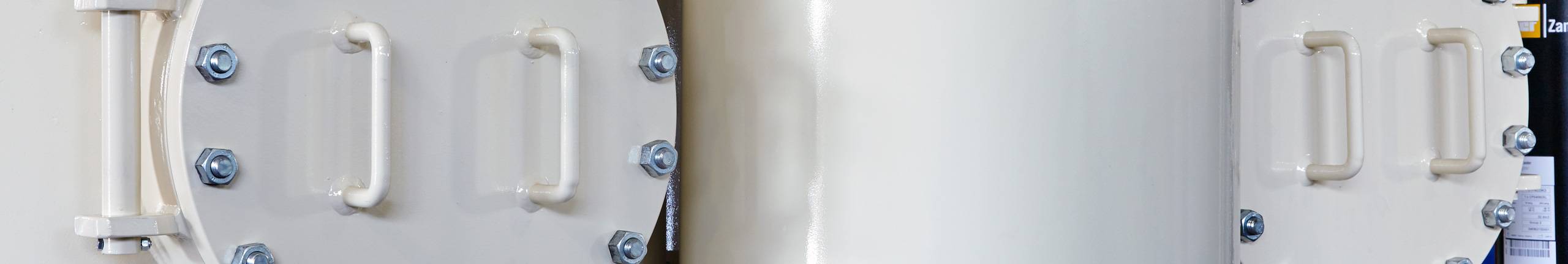

  • Adsorber Vessels to PED 97/23/CE

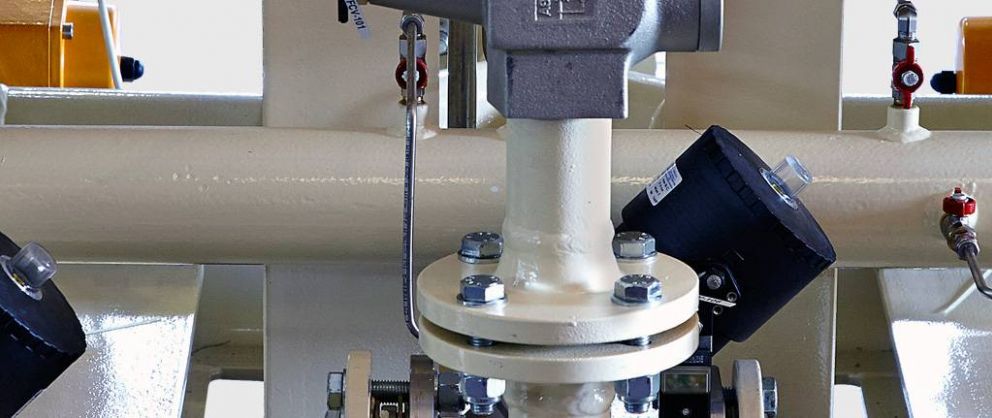

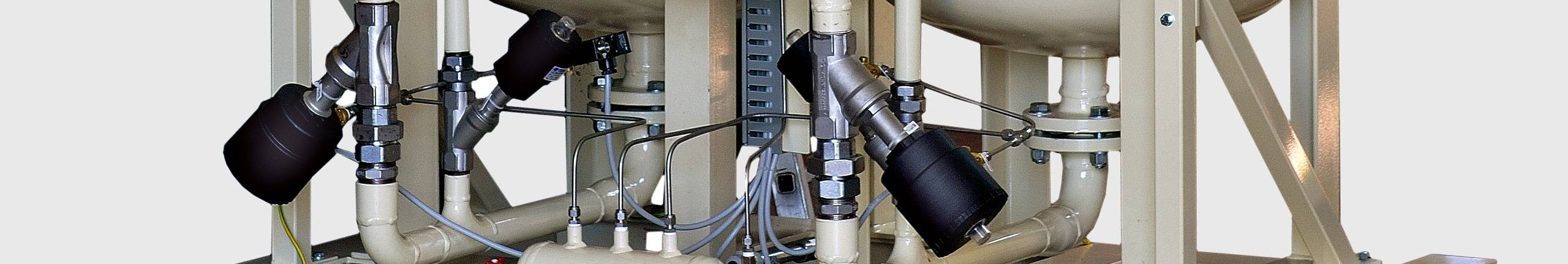

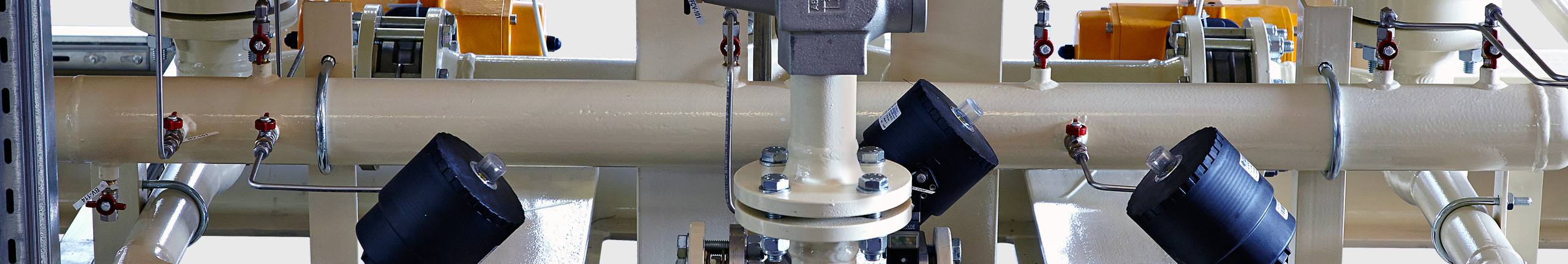

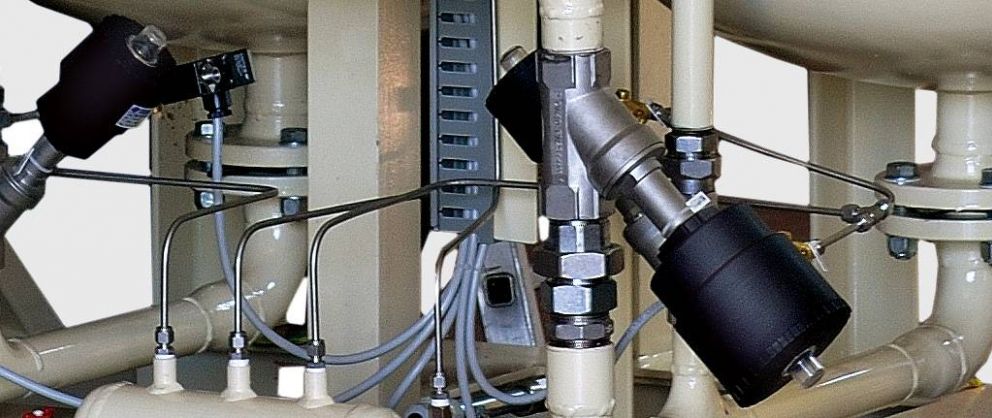

  • Process Valves with Stainless Steel Bodies
  • Process Piping within Skid Boundary
  • Exhaust Silencer

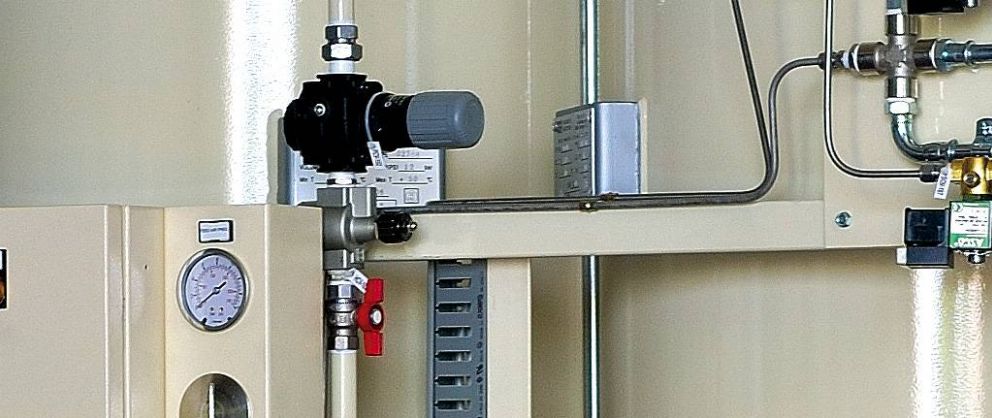

  • Air and Oxygen Pressure Regulation
  • Oxygen Analyser with Zirconium Oxide Sensor
  • Oxygen Pressure Transmitter

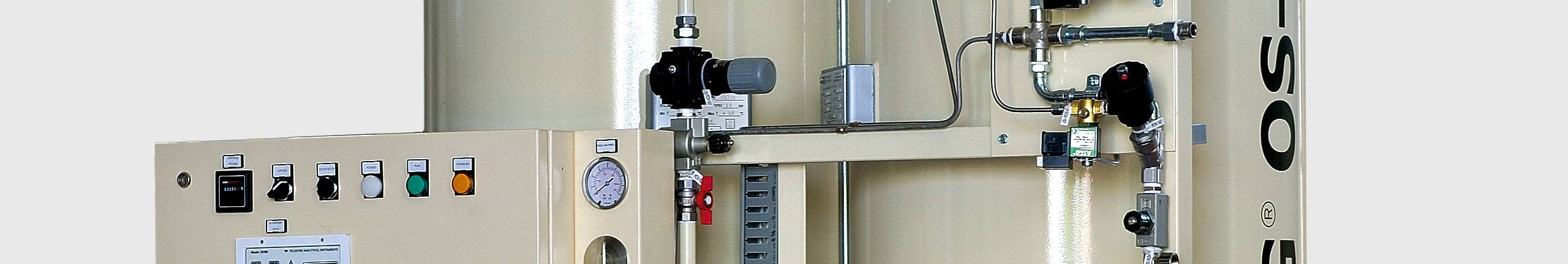

  • Control System with Siemens S7 PLC and Siemens KTP-700 Touch Panel HMI
  • Ethernet Modbus TCP/IP Data Communication

Options

  • Electronic Oxygen Flow Meter
  • Feed Air Pressure Transmitter
  • Feed Air/Oxygen Temperature Transmitter
  • Feed Air/Oxygen Moisture Analyser
  • Analogue Output Signals 4 – 20 mA
  • Modbus RTU or Profibus DP Data Communication
  • Wi-Fi or GSM Module
  • Adsorber Vessels to ASME VIII Div. 1, AS1210 or SELO
  • Oxygen High Pressure Booster
  • Oxygen Cylinder Filling Rack
  • Medical Upgrade with CO/CO2 Analyser
