Medical Gas Distribution

NOXERIOR offers a wide choice of medical gas systems to ensure the safe and efficient distribution of the gases in the piping network of the healthcare facility, from the medical gas plant room to the patient room.

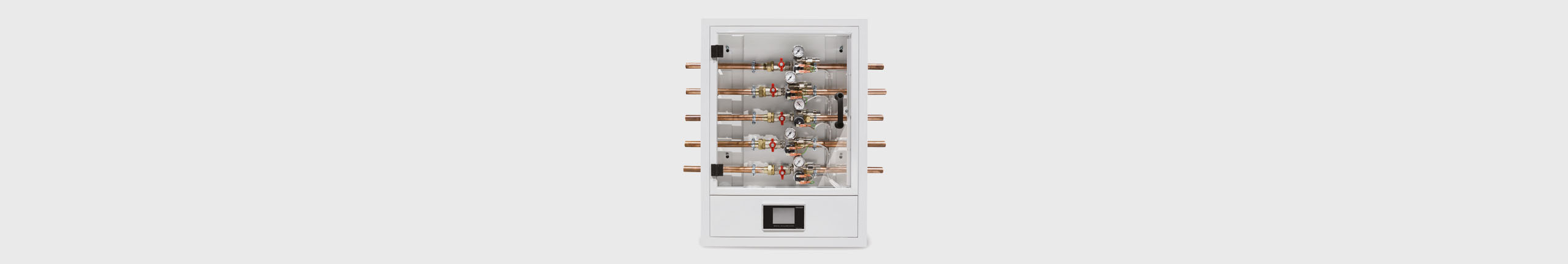

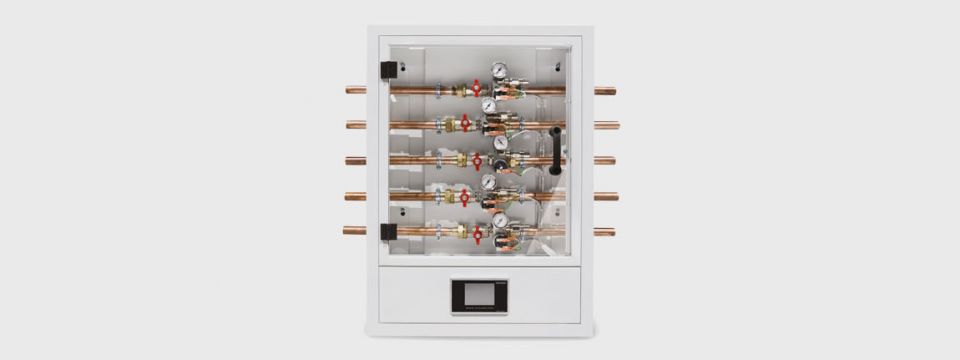

Area valves services units

Area Valves Services Units (AVSU) are designed to isolate a medical gas supply in case of emergency in the piping network, as well as during any installation or maintenance work.

NOXERIOR offers a choice of surface of flush mounting systems, all compliant with all medical gases and including up to ten interception valves as standard.

Key features:

  • Modular device including up to 10 valves as standard, specific configurations available upon
  • request
  • Compliant with EN ISO 7396-1 or HTM 02-01
  • Compatible with all medical gases including
  • medical air, surgical air, O2, N2O and vacuum
  • Pipe Diameters : 10 to 54 mm
  • Robust metallic cabinet for surface or flush mounting
  • Plexiglas and door with seal
  • Gas entrance / exit by the top or the side

Available options:

  • NIST outlet for emergency supply
  • Pressure gauge, pressure sensor
  • Pressure switch, vacuum switch
  • Integrated alarm panel with touch screen
  • Lockable door



Bed head units

Full range of bed head units compliant with most standards (NF, BS, DIN, Ohmeda, ect…) for a safe delivery of medical gases to patients. Various architectural solutions available for all needs ans styles.



Ceiling pendants

Modern design ceiling pendants providing easy access to medical gases and electrical connections within operating theaters ans intensive care units. Various arm configurations : rigid, single ou dual stage, manual or electrical movements.



Oxygen therapy

NOXERIOR offers a large choice of oxygen therapy products compliant with most available standards, including NF, BS and DIN. Different mounting options are available to fulfill all healthcare facilities requirements



Primary & Pipes, Fifting & Valves

Made of seamless and degreased high quality copper, NOXERIOR grade pipes bear the required engraved information for complete traceability. They are supplied with protective caps to avoid any contact with external impurities.



Primary & second stage pressure reducers

Made of seamless and degreased high-quality copper, NOXERIOR grade pipes bear the required engraved information for complete traceability. They are supplied with protective caps to avoid any contact with external impurities.



Terminal units

Full range of terminal units compliant with most worldwide standards.
